Utility Fuel Tanks

1000db

1,000 Gal.
4,500 L.

Double Bottom Fuel Tank

Double Bottom

Magnifying Glass view larger image

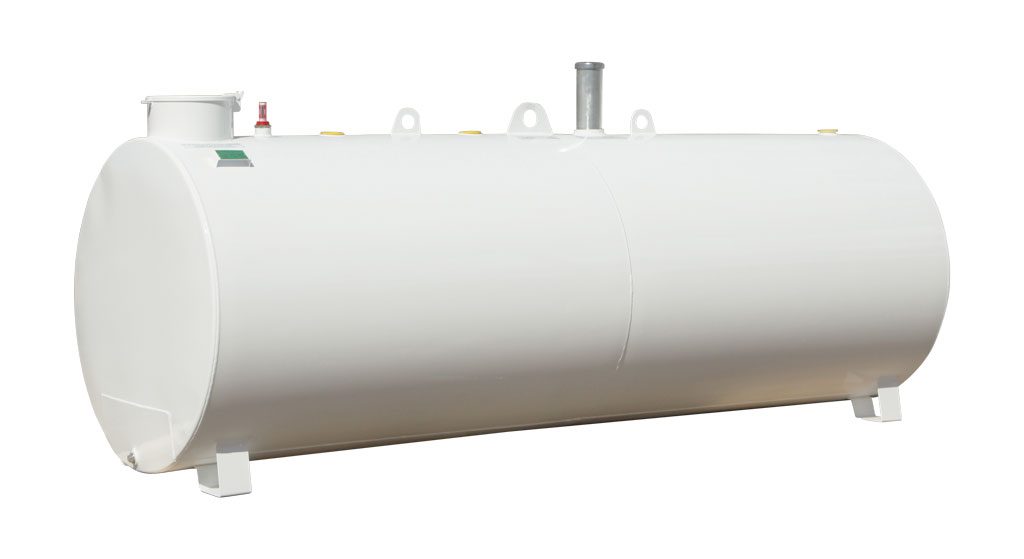

 Nithwood 1000 Gallon Double-Bottom Fuel Tank
Magnifying Glass view larger image
Magnifying Glass view larger image
Magnifying Glass view larger image
Nithwood 1000 Gallon Double-Bottom Fuel Tank

Specifications

Capacity:1,000 Gallons
4,500 Litres
Length:146"
Diameter:49.5"
Weight:1020 lbs.
Finish:Powder-coated
Steel:12-guage Steel
ULC:S601-14

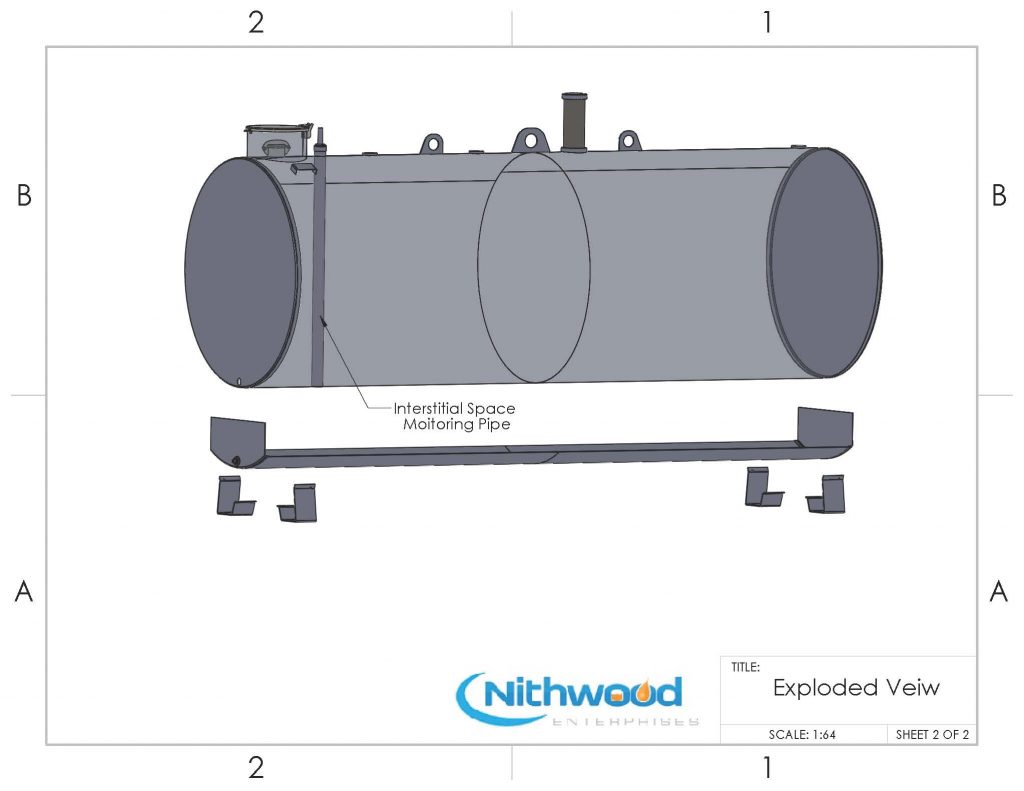

3D Drawing (pdf)
*requires a 3d pdf reader Dimensional Drawing (pdf)
»Contact us about this Fuel Tank
